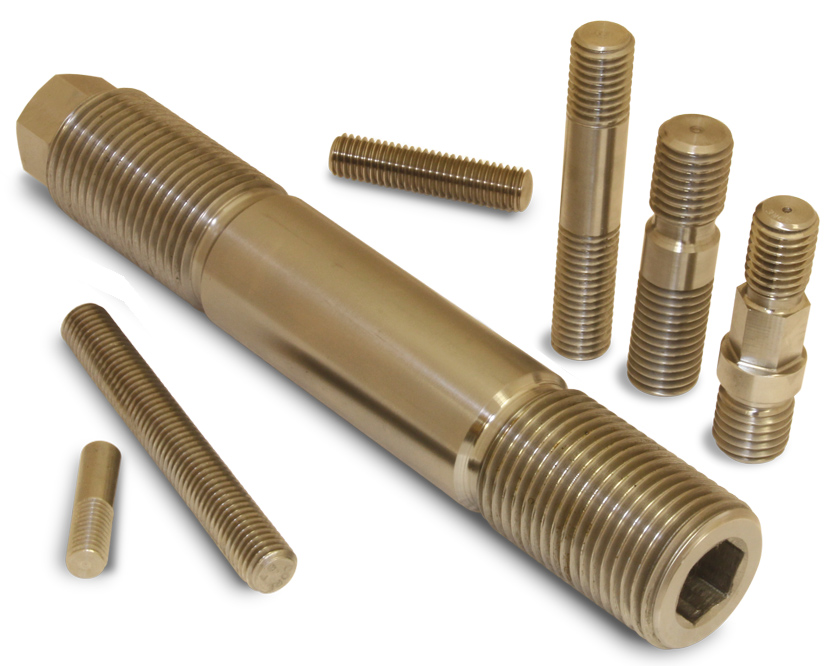

Studs
Size Capabilities
• Nom. Dia.: ¼” (M6) to 5” (M125)
• Lengths up to 24 inches
Stud Types
• Double end
• Tap end
• Single end
• External wrenching
• Stud bolts
• Socket set scre
• Full threaded (TFL)
Body Options
• TFL per ASME-B18.31.2
• Std. body OD per ASME-B18.3.1.2
• Sized body OD to +/-0.0001”
• Oversized body OD (shoulder screw)
• Undersized body OD (reduced body)
• Undercuts
